Parabolic SAR

Stop and reverse trend following system

Parabolic SAR Backtest Results

Historical backtesting on Electronic Arts (EA) stock demonstrating the Parabolic SAR trend following system.

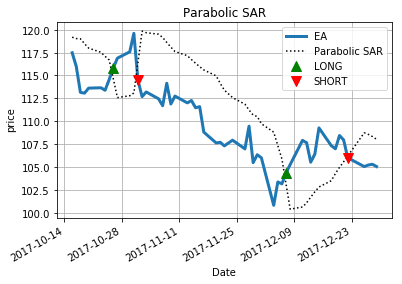

Parabolic SAR Trading Signals

Parabolic SAR Trading Signals

Price chart with Parabolic SAR dots and trading signals. Green arrows indicate long entries when price crosses above SAR, red arrows show short entries when price falls below SAR.

Parabolic Stop and Reverse Theory

Parabolic SAR (Stop and Reverse) is a trend-following indicator developed by J. Welles Wilder, the same creator of RSI.

The indicator appears as a series of dots positioned above or below the price chart, acting as dynamic support and resistance levels.

When SAR dots are below the price, it indicates an uptrend; when above, it signals a downtrend.

The SAR "flips" when price crosses through the dots, providing clear trend reversal signals.

The indicator accelerates as the trend progresses, tightening the stop-loss level to protect profits.

Parabolic SAR works best in trending markets but can generate false signals in sideways conditions.

The calculation involves complex recursive mathematics that account for extreme points and acceleration factors.

Parabolic SAR Calculation

1
Basic SAR Formula

SARt+1=SARt+AF×(EP−SARt)SAR_{t+1} = SAR_t + AF \times (EP - SAR_t)

Current SAR plus acceleration factor times the difference between extreme point and current SAR.

2
Acceleration Factor Progression

AF=min⁡(AFmax,AFstart+step×n)AF = \min(AF_{max}, AF_{start} + step \times n)

AF starts at 0.02, increases by 0.02 for each new extreme point, capped at 0.20 for most assets.

3
Rising SAR Constraint

SARt+1=min⁡(SARcalc,Lowt−1,Lowt−2)SAR_{t+1} = \min(SAR_{calc}, Low_{t-1}, Low_{t-2})

In uptrends, SAR cannot exceed the lowest low of the previous two periods.

4
Falling SAR Constraint

SARt+1=max⁡(SARcalc,Hight−1,Hight−2)SAR_{t+1} = \max(SAR_{calc}, High_{t-1}, High_{t-2})

In downtrends, SAR cannot fall below the highest high of the previous two periods.

5
Trend Reversal Condition

If Price crosses SAR, then Trend=−Trend\text{If } Price \text{ crosses } SAR \text{, then Trend} = -\text{Trend}

When price crosses the SAR level, the trend direction reverses and SAR switches sides.

Parabolic SAR Implementation

The algorithm involves recursive calculations with trend tracking, extreme point monitoring, and acceleration factor management.

SAR Calculation Engine

python
def parabolic_sar(data):
    # Standard SAR parameters for forex/commodities
    initial_af = 0.02
    step_af = 0.02
    end_af = 0.2

    data['trend'] = 0
    data['sar'] = 0.0
    data['real sar'] = 0.0
    data['ep'] = 0.0  # Extreme Point
    data['af'] = 0.0  # Acceleration Factor

    # Initialize first values
    data['trend'][1] = 1 if data['Close'][1] > data['Close'][0] else -1
    data['sar'][1] = data['High'][0] if data['trend'][1] > 0 else data['Low'][0]
    data.at[1, 'real sar'] = data['sar'][1]
    data['ep'][1] = data['High'][1] if data['trend'][1] > 0 else data['Low'][1]
    data['af'][1] = initial_af

    # Recursive calculation for each period
    for i in range(2, len(data)):
        # Calculate tentative SAR
        temp = data['sar'][i-1] + data['af'][i-1] * (data['ep'][i-1] - data['sar'][i-1])

        # Apply constraints based on trend direction
        if data['trend'][i-1] < 0:  # Downtrend
            data.at[i, 'sar'] = max(temp, data['High'][i-1], data['High'][i-2])
            temp = 1 if data['sar'][i] < data['High'][i] else data['trend'][i-1] - 1
        else:  # Uptrend
            data.at[i, 'sar'] = min(temp, data['Low'][i-1], data['Low'][i-2])
            temp = -1 if data['sar'][i] > data['Low'][i] else data['trend'][i-1] + 1

        data.at[i, 'trend'] = temp

        # Update Extreme Point
        if data['trend'][i] < 0:
            temp = min(data['Low'][i], data['ep'][i-1]) if data['trend'][i] != -1 else data['Low'][i]
        else:
            temp = max(data['High'][i], data['ep'][i-1]) if data['trend'][i] != 1 else data['High'][i]
        data.at[i, 'ep'] = temp

        # Update Acceleration Factor
        if abs(data['trend'][i]) == 1:  # Trend reversal
            temp = data['ep'][i-1]
            data.at[i, 'af'] = initial_af
        else:
            temp = data['sar'][i]
            if data['ep'][i] == data['ep'][i-1]:  # No new extreme
                data.at[i, 'af'] = data['af'][i-1]
            else:  # New extreme point
                data.at[i, 'af'] = min(end_af, data['af'][i-1] + step_af)

        data.at[i, 'real sar'] = temp

    return data

Complex recursive calculation that tracks trend direction, extreme points, and dynamically adjusts the SAR level with acceleration factors.

Signal Generation

python
def signal_generation(df, method):
    data = method(df)

    data['positions'] = 0
    data['signals'] = 0

    # Generate position signals based on SAR vs price relationship
    data['positions'] = np.where(data['real sar'] < data['Close'], 1, 0)

    # Convert positions to entry/exit signals
    data['signals'] = data['positions'].diff()

    return data

Generates trading signals when price crosses above (buy) or below (sell) the Parabolic SAR level.

Trend Visualization

python
def plot(data, ticker):
    fig = plt.figure()
    ax = fig.add_subplot(111)

    # Plot price and SAR
    data['Close'].plot(lw=3, label=f'{ticker}')
    data['real sar'].plot(linestyle=':', label='Parabolic SAR', color='k')

    # Mark trading signals
    ax.plot(data.loc[data['signals'] == 1].index,
            data['Close'][data['signals'] == 1],
            marker='^', color='g', label='LONG', lw=0, markersize=10)
    ax.plot(data.loc[data['signals'] == -1].index,
            data['Close'][data['signals'] == -1],
            marker='v', color='r', label='SHORT', lw=0, markersize=10)

    plt.legend()
    plt.grid(True)
    plt.title('Parabolic SAR Strategy')
    plt.ylabel('Price')
    plt.show()

Visualizes the price chart with SAR dots and clearly marks entry/exit points for trend following trades.

Implementation Steps

  1. 1Download historical OHLC data with sufficient history for SAR calculation
  2. 2Initialize SAR parameters: AF start (0.02), AF step (0.02), AF max (0.20)
  3. 3Calculate initial trend direction based on first two closing prices
  4. 4Implement recursive SAR calculation with trend tracking and extreme point monitoring
  5. 5Apply SAR constraints to prevent unrealistic values during trend reversals
  6. 6Generate trading signals when price crosses the SAR level
  7. 7Implement position management with proper entry and exit timing
  8. 8Monitor performance and adjust AF parameters for different asset classes

Key Metrics

Trend identification accuracy rate
Average length of trends captured
Signal-to-noise ratio in different market conditions
Performance in trending vs sideways markets
Sensitivity to acceleration factor parameters
Maximum adverse excursion during position holding
Profit factor (gross profit / gross loss)

Risk Considerations

Generates excessive false signals in sideways, choppy markets
The acceleration feature can cause premature exits during extended trends
Calculation complexity makes it prone to implementation errors
Parameter sensitivity - small changes in AF can dramatically affect performance
Lag in trend reversal recognition may miss quick market turns
Not suitable for range-bound or highly volatile assets
Requires continuous monitoring as signals are generated frequently

Practice Implementation

Prerequisites

Mathematical Background

  • • Linear regression and OLS estimation
  • • Time series analysis (stationarity, unit roots)
  • • Hypothesis testing and p-values
  • • Basic econometrics (error correction models)

Technical Skills

  • • Python programming (pandas, numpy)
  • • Statistical libraries (statsmodels)
  • • Data visualization (matplotlib)
  • • Financial data handling (yfinance)

Complete Implementation

Access the full Python implementation from the original quantitative trading repository:

bash
# Complete pair trading implementation
git clone https://github.com/je-suis-tm/quant-trading.git
cd quant-trading
python "Pair trading backtest.py"
# Modify tickers and parameters for your own analysis

Learning Checkpoints

1

Understand Cointegration

Can you explain why two assets might be cointegrated and what breaks this relationship?

2

Interpret Statistical Tests

Practice reading ADF test results and understanding when to accept/reject cointegration.

3

Signal Generation

Implement Z-score calculations and understand threshold selection (±1σ vs ±2σ).

4

Risk Management

Understand position sizing, monitoring regime changes, and exit strategies.

Recommended Learning Path

Immediate Actions

  • Download and run the Python script
  • Test with different asset pairs
  • Experiment with threshold parameters

Advanced Studies

  • Learn Johansen cointegration test
  • Study Vector Error Correction Models
  • Explore multiple asset pair trading

Important Disclaimer

This strategy involves significant risk. Historical cointegration relationships can break permanently. Always use proper risk management, position sizing, and never risk more than you can afford to lose. Paper trade extensively before using real capital.
